Rubber Plastic Insulation Protection PVC Adhesive Tape 25mm Green

Product Categories
Anhui Uniform Trading Co.Ltd
Contact Now

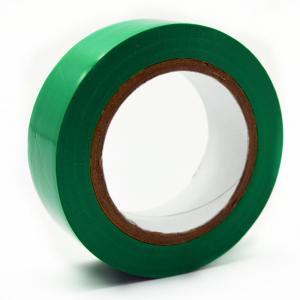

Rubber Plastic Insulation Protection PVC Adhesive Tape 25mm Green

  • 1
  • 2
  • 3

Brand Name : UNIFORM

Model Number : AUTC-PVCT-518

Certification : RoHS, ISO9001, CE, TUV

Place of Origin : CHINA

MOQ : 5,000rolls

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 50,000rolls/day

Delivery Time : 10-12days

Packaging Details : carton box and wooden box

Material : PVC

Colour : white, yellow, blue, brown, etc.

Length : 15m

Width : 16mm

Thickness : 0.15mm

Feature : Waterproof

Contact Now

Green Color PVC Electrical Tape Waterproof Insulation Pipe Rubber Plastic Insulation Tape

Application:

used for insulation of wires and cable joints within 600V from 0°C to below 80°C, as well as for the acquaintance of wires and cables; also used for repairing the sheath of high-voltage cable joints.


How to use:

Wrap it in a semi-overlapping way. When wrapping the last layer, do not stretch it to prevent warping.


Storage:

Under normal temperature and ventilation conditions, it is valid for 2 years from the date of manufacture.

Usage:
For integration wiring harness/electric wire winding/insulation protection/eliminate magnetic coil/Communications wiring, etc.
Product Name Model NO. Carrier Color Film thickness (mm) Tensilestrength (kg/25mm) Adhesion to steel (N/25mm) Elongation at break (%) Voltage resistance (KV) validity date Months
Electrical adhesive tape AUTC650-1 PVC film colorful 0.11 1.5 0.15 150 4.5 6
AUTC650-2 0.13 2.0 0.15 160 5
AUTC650-3 0.13 2.0 0.15 160 5
AUTC650-4 0.20 3.5 0.15 200 8
AUTC650-5 0.19 3.5 0.18 200 8
AUTC650-6 0.19 3.5 0.15 200 8
AUTC650-7 0.15 2.8 0.15 160 6
AUTC650-8 0.15 2.8 0.18 160 6
AUTC650-9 0.18 3.2 0.18 180 8
AUTC650-10 0.18 3.2 0.18 180 8
AUTC650-11 0.18 3.2 0.18 180 8
AUTC650-12 0.18 3.2 0.18 180 8
AUTC650-13 0.19 3.5 0.18 200 8
AUTC650-14 0.13 1.5 0.15 120 4
AUTC650-15 0.18 2.0 0.15 160 6

Rubber Plastic Insulation Protection PVC Adhesive Tape 25mm GreenRubber Plastic Insulation Protection PVC Adhesive Tape 25mm GreenRubber Plastic Insulation Protection PVC Adhesive Tape 25mm GreenRubber Plastic Insulation Protection PVC Adhesive Tape 25mm GreenRubber Plastic Insulation Protection PVC Adhesive Tape 25mm Green

Applications
Rubber Plastic Insulation Protection PVC Adhesive Tape 25mm Green
Rubber Plastic Insulation Protection PVC Adhesive Tape 25mm GreenRubber Plastic Insulation Protection PVC Adhesive Tape 25mm GreenRubber Plastic Insulation Protection PVC Adhesive Tape 25mm GreenRubber Plastic Insulation Protection PVC Adhesive Tape 25mm Green
